Angular Highcharts - Scatter Charts

Following is an example of a basic scatter chart.

We have already seen the configuration used to draw a chart in Highcharts Configuration Syntax chapter.

An example of a basic scatter chart is given below.

Configurations

Let us now see the additional configurations/steps taken.

series

Configure the chart type to be scatter based. series.type decides the series type for the chart. Here, the default value is "line".

var chart = {
   type: 'scatter',
   zoomType: 'xy'
};

Example

app.component.ts

import { Component } from '@angular/core';
import * as Highcharts from 'highcharts';
@Component({
  selector: 'app-root',
  templateUrl: './app.component.html',
  styleUrls: ['./app.component.css']
})
export class AppComponent {
   highcharts = Highcharts;
   chartOptions = {
      title : {
         text: 'Scatter plot'
      },
      series : [{
         type: 'scatter',
         zoomType:'xy',
         name: 'Browser share',
         data: [ 1, 1.5, 2.8, 3.5, 3.9, 4.2 ]
      }]
   };
}

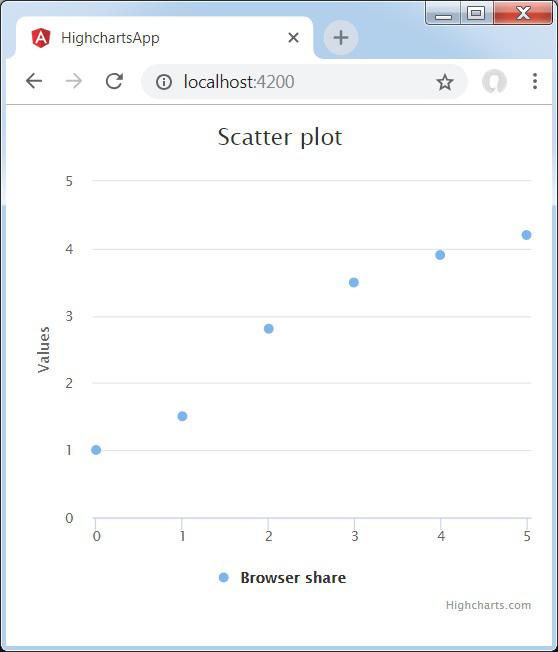

Result

Verify the result.
